| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Dentsply Ankylos® |
| Minimum Order Quantity: | 5pcs |
| Price: | USD10-14 (included screw) |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Connection: | Engaging |
| Properties: | Implant Materials & Artificial Organs | Product Tolerance: | +-0.01mm |
| Highlight: | Dentsply Ankylos Ti Base Abutment,Dentsply Ankylos Abutment,ISO9001 Internal Ti Abutment |
||

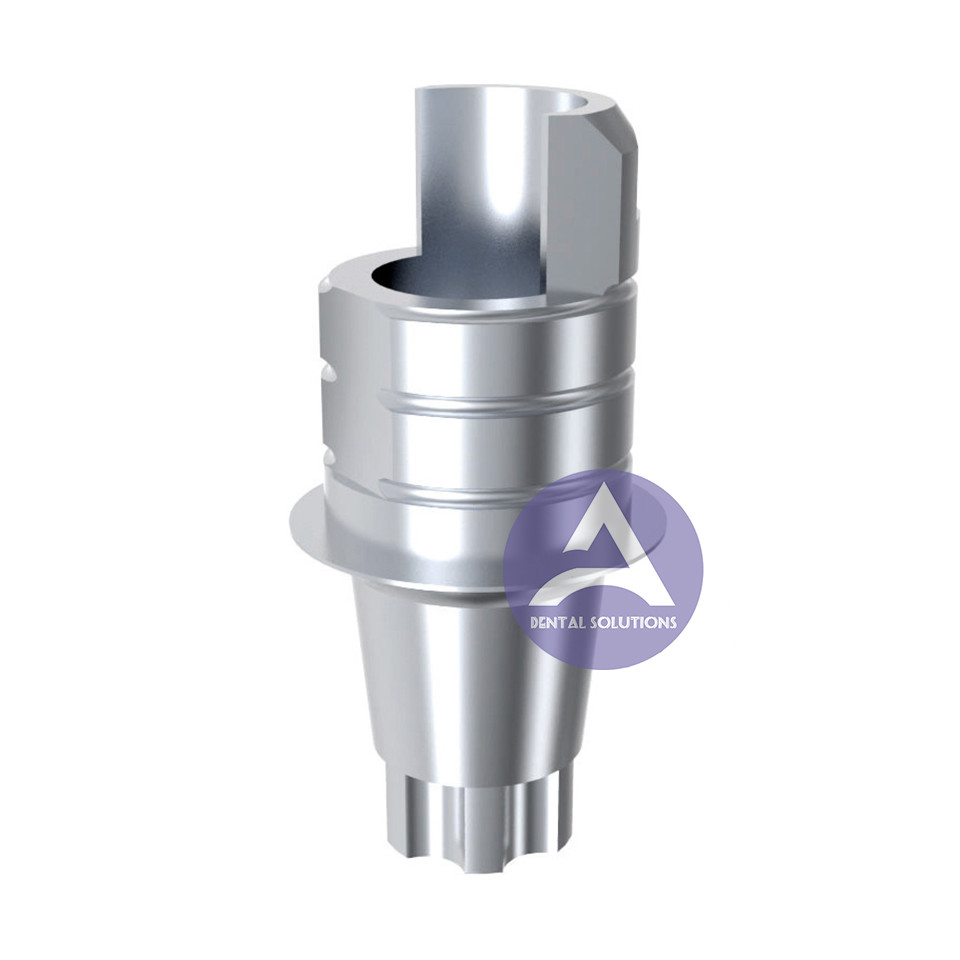

ISO9001 Internal Hexagon Dentsply Ankylos Ti Base Abutment
Dentsply Ankylos® Internal Hexagon Titanium Ti-Base Abutment
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Titanium interface abutment
* 1pc Screw Included
* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility
* Exterior retentions for more cementation bonding
Specific design ensures a stable union, reinforcing the structure of zirconium in the areas of greatest stress, softening edges and ensuring the service life of the prosthesis.
Furthermore, the saving is also shown in the less time needed when working on the most sensitive part of the prosthesis, the adjustment with the implant.
Approved by CE, ISO 9001, ISO 13485
|
|
TI BASE |
A |
B |
C |
D |
|
| 15.050 | Non-engaging | 2,52 | Circular | 1,35 | 4,50 | |
| 15.250 | Non-engaging | 2,52 | Circular | 2,41 | 4,50 | |
| 16.050 | Engaging | 2,52 | Cone ANK | 1,35 | 4,50 | |
| 16.250 | Engaging | 2,52 | Cone ANK | 2,41 | 4,50 | |

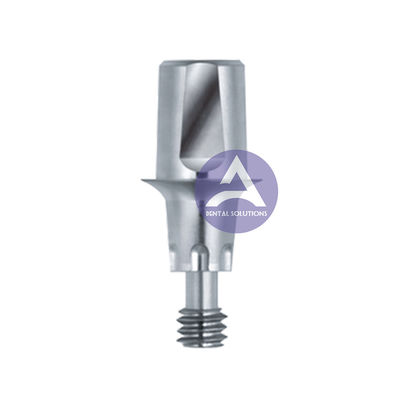

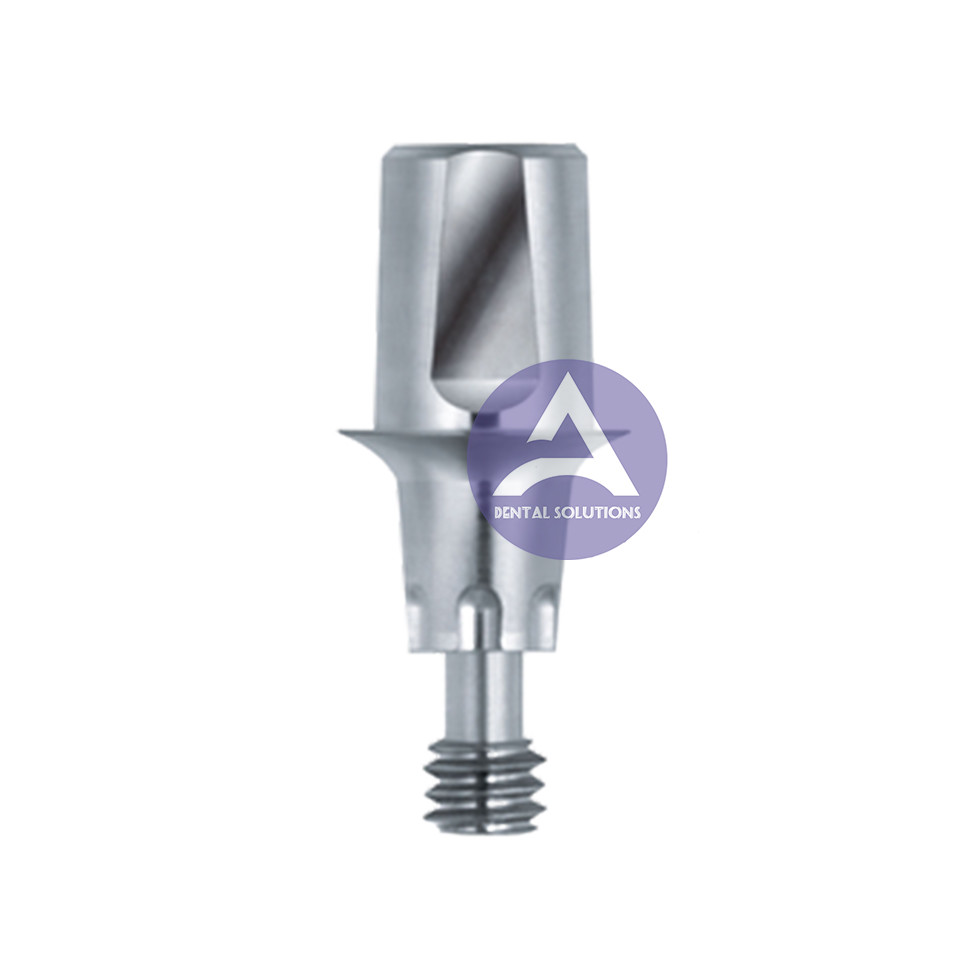

Points of Dentsply Ankylos® C/X Abutment:
Fig. 1
Due to the universal implant/abutment interface there are no platform specific abutments for this system, all abutments fit any platform diameter regardless of size. The internal connection of the implant has been reengineered since the inception of the Ankylos® implant system. Older implants designated as "C" type have no indexing feature while the new design designated as "X" type features a exiguous indexing system. Abutments are either indexed (X) or non indexed (C). Indexed and non indexed abutments will seat properly in to indexed implants (Fig.1, Ankylos® X) but indexed abutments will not seat in to non indexed implants (Ankylos® C) .
Fig. 2
Non indexed abutments require a seating index (Fig.2) to transfer the abutment position from the master model to the patient. Abutment material ranges from titanium to through and through zirconia abutments. The abutment fixation screw is designed with a permanently trapped feature and can not be replaced in case of screw failure. Abutments are machined in three configurations; standard, regular and balance.
No UCLA (cast on abutment) is offered for any Ankylos® C/X implant due to engineering limitations. This shortcoming may be overcome by utilizing CAD CAM technology through Atlantis™ (Astra Tech).
