| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Astra Tech Osseospeed® |
| Minimum Order Quantity: | 10pcs |
| Price: | USD6-9 |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Compatible: | RP 3.5-4.0mm / WP 4.5-5.0mm |
| Gingival: | 3mm/ 4mm/ 5mm/ 6mm/Customized | Properties: | Implant Materials & Artificial Organs |
| Product Tolerance: | +-0.01mm | Screwdriver: | Hex 1.27mm |
| Highlight: | Titanium Custom Healing Abutment,Astra Tech Osseospeed Healing Abutment,6mm Healing Abutment |
||

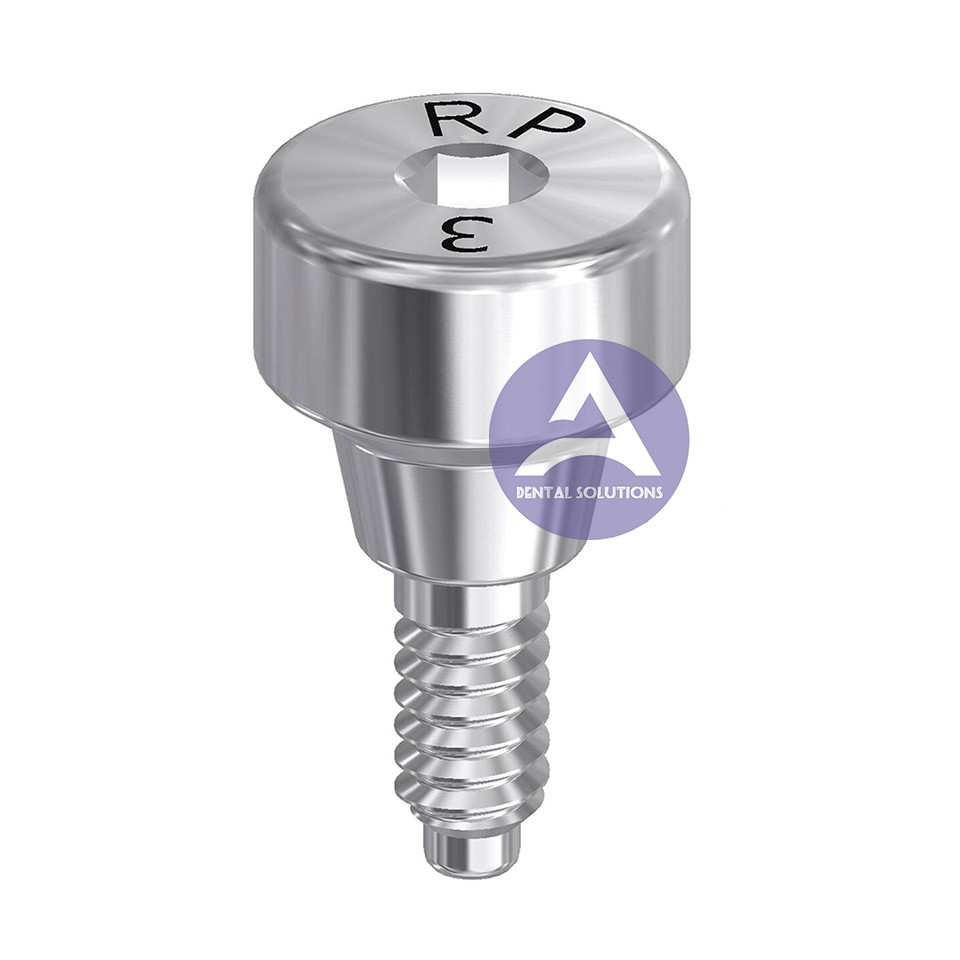

Astra Tech Osseospeed Titanium Custom Healing Abutment
Astra Tech Osseospeed® Implant Titanium Healing Cap Abutment Compatible
RP 3.5-4.0mm / WP 4.5-5.0mm
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Titanium interface abutment
* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility
* Can production Custom Gingival Heights
|
|
HEALING ABUTMENT |
A |
C |
||
| 20.024/3 | RP | 3mm | 4,50 | 3,00 | |
| 20.024/4 | RP | 4mm | 4,50 | 4,00 | |
| 20.024/5 | RP | 5mm | 4,50 | 5,00 | |
| 20.025/3 | WP | 3mm | 4,90 | 3,00 | |
| 20.025/4 | WP | 4mm | 4,90 | 4,00 | |
| 20.025/5 | WP | 5mm | 4,90 | 5,00 |
|
Points of Astra OsseoSpeed™ Healing Cap:
Collar height
Healing abutments for all three (3.0 yellow, 3.5/4.0 aqua, 4.5/5.0 lilac) implant/abutment platform diameter groups are machined to closely match the emergence profiles of Astra Tech's final abutments. The healing abutments are designed as a uni body, incorporating the screw in the abutment body as a one piece design for easy handling. No color coding of the healing abutments themselves is provided, only on the component packaging but the top of each healing abutment is marked with numbers to indicate the emergence profile in millimeters, collar height in millimeters and black lines to reveal the platform diameter group. One line specifies the 3.0 (yellow) platform, two lines designate the 3.5/4.0 (aqua)
Emergence profile
platform and three lines denote the 4.5/5.0 (lilac) platform diameter. 3.0 platform abutments are machined with one (4mm) emergence profile and two (2mm, 4mm) collar heights. 3.5/4.0 platform abutments are machined with four (4, 4.5, 5.5, 6.5mm) emergence profiles and three (2, 4, 6mm) collar heights. 4.5/5.0 platform abutments are machined with two (5.5, 6.5mm) emergence profiles and three (2, 4, 6mm) collar heights.
