| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | ITI Straumann Tissue Level SynOcta® |
| Minimum Order Quantity: | 10pcs |
| Price: | USD8~12/pcs (included screw, 10mm) |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Size: | 10mm, 14mm |
| Compatible: | NN(3.5) / RN(4.8) / WN(6.5) | Connection: | Engaging |
| Properties: | Implant Materials & Artificial Organs | Product Tolerance: | +-0.01mm |
| Highlight: | Tooth Titanium Premill Blank,Tooth Ti Premill Blank,SynOcta Tooth Premill Blank |
||

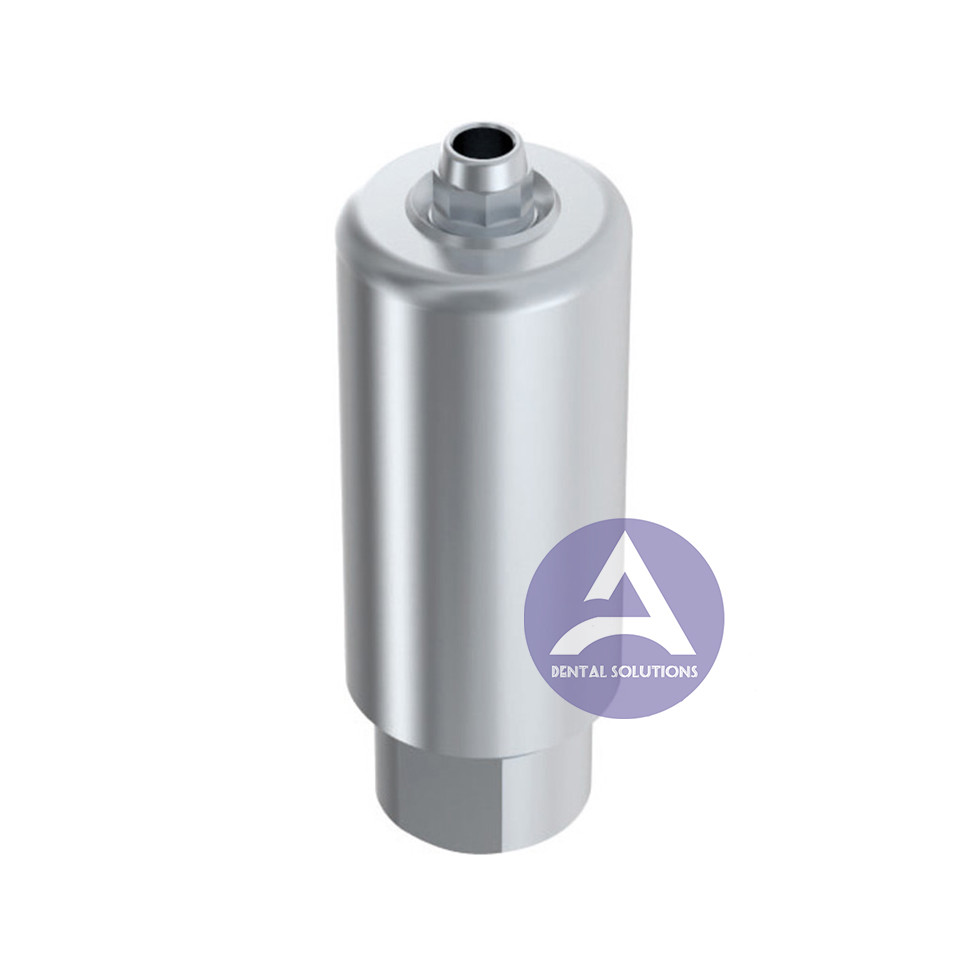

ITI Straumann Tissue Level SynOcta® Implant Internal Titanium Premill Blank 10mm Engaging
NN(3.5) / RN(4.8) / WN(6.5)
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Simply efficiency
* Precision machined up to ± 5µm
* Benefit from a faster and controlled turnaround time
* Different diameter available of 10mm, 14mm
Pre-milled Abutment Blanks, you can now produce titanium customised abutments with your milling equipment.
Boost your efficiency by using your milling machines and benefit from all major implant connections.
Approved by CE, ISO 9001, ISO 13485
* We also can provide another 3 type of premill as above picture shown. Welcome to further inquire. Thanks.
Points of ITI Straumann Tissue level implant:
Fig. 1
Straumann® implants are available in grade 4 titanium and Rxoloid®. The implant body is machined with parallel walls and an outside buttress thread design. A machined collar (Fig.1) of 2.8mm (Standard) or 1.8mm (Standard Plus) separates the implant/abutment interface from the surface treated implant body portion. Surface roughening is achieved through large grit sand-blasting with corundum particles followed by acid etching, branded as SLA® surface.
A surface enhancement called SLActive® is an option available in addition to the SLA® surface treatment.
Fig. 2
The SLActive® surface has less surface tension and increases hydrophilic properties (wetability) intended to attract blood cells. SLActive® treated implants are stored and shipped in a vial filled with an isotonic liquid (salt water) to preserve the reduced surface tension qualities of the implant.
The implant/abutment indexing feature is either machined as a external octagon (Fig.2 left) or an internal octagon (Fig.2 middle and right, Fig.3). External hex implants referred to as narrow neck implant (NN) are only available with a 3.3mm body diameter and a 3.5mm implant/abutment platform as Standard Plus (1.8mm machined neck) in four lengths (8, 10, 12, 14mm).
Fig. 3
Internal octagon implants are further divided in to two implant/abutment platform diameters of 4.8mm and 6.5mm (Fig.2 middle and right). 4.8mm platform implants are called regular neck (RN) and are offered with implant body diameters of 3.3, 4.1 and 4.8mm in lengths of 6, 8, 10, 12, 14 and 16mm. 6.5mm platform implants are referred to as wide neck implants (WN) and available in one implant body diameter of 4.8mm in four possible lengths of 6, 8, 10 and 12mm.
