| Place of Origin: | China |
|---|---|
| Brand Name: | ANGELS |
| Certification: | TUV CE, ISO13485, ISO9001 |
| Model Number: | Nobel Biocare Active® |
| Minimum Order Quantity: | 5pcs |
| Price: | USD10-14 (included screw) |
| Packaging Details: | 1pcs/bag |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500,000pcs/month |
| Material: | Ti 6AI-4V ELI (Grade 5) | Warranty: | 12 Months |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Connection: | Engaging & Non-Engaging |
| Compatible: | NP 3.5mm/ RP 4.3/5.0mm | Properties: | Implant Materials & Artificial Organs |
| Product Tolerance: | +-0.01mm | ||
| Highlight: | Nobel Biocare Temporary Abutment,NP 3.5mm Temporary Abutment,Non Engaging Temporary Abutment |
||

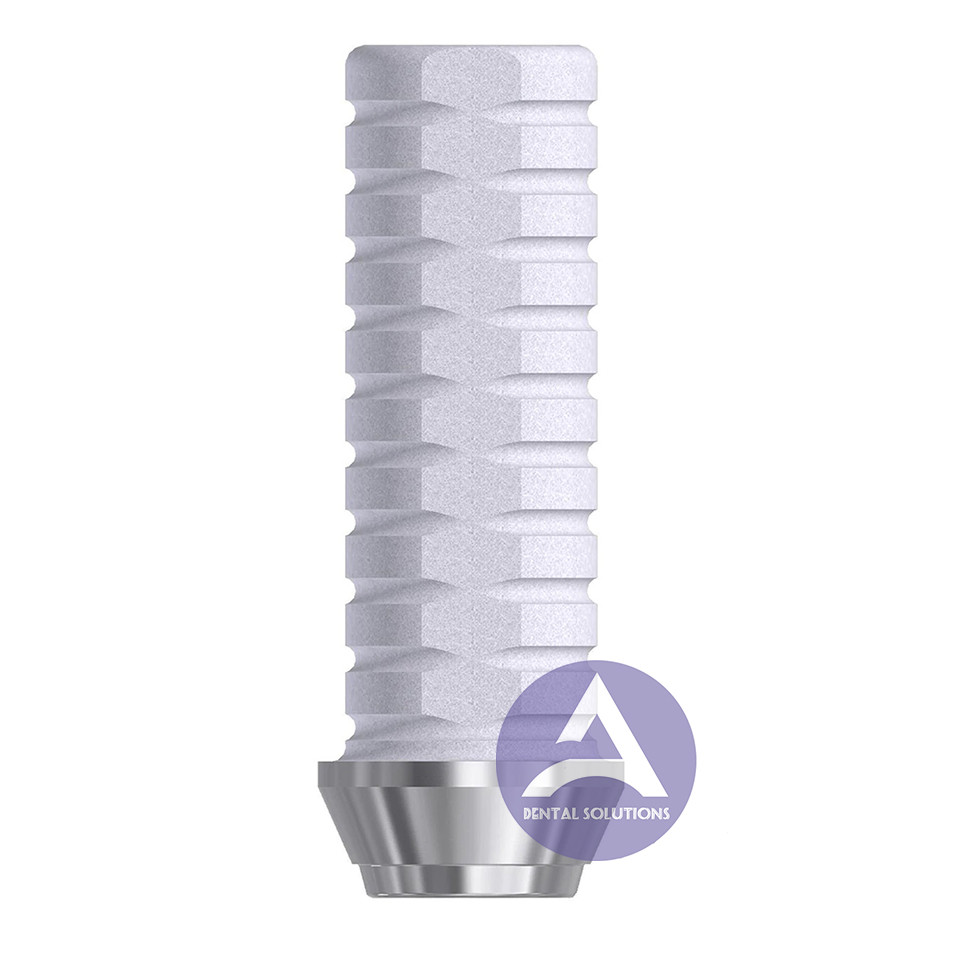

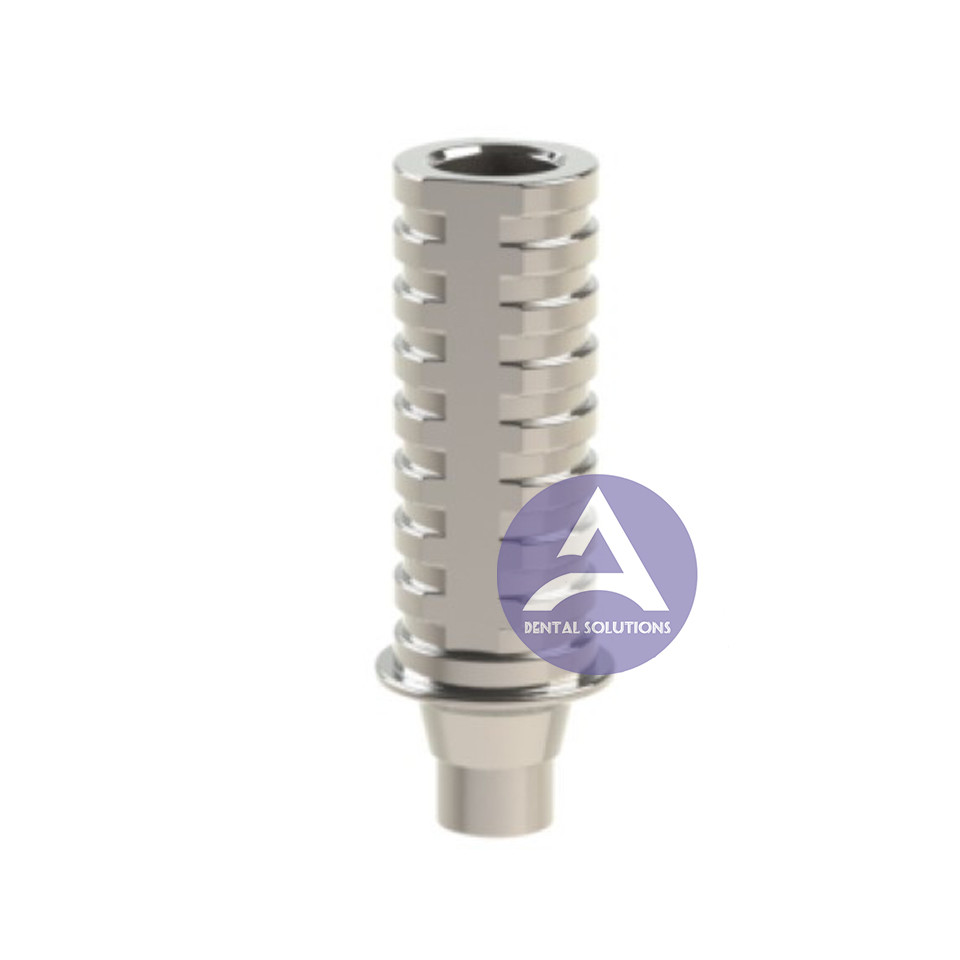

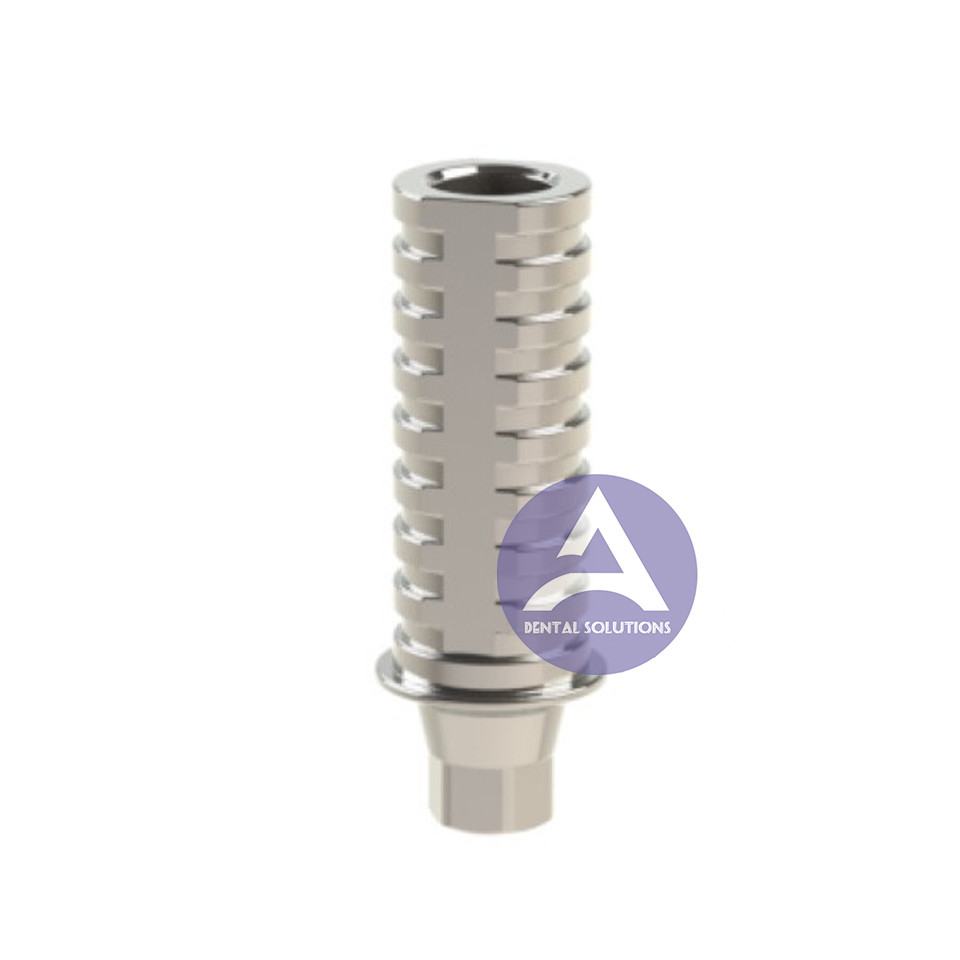

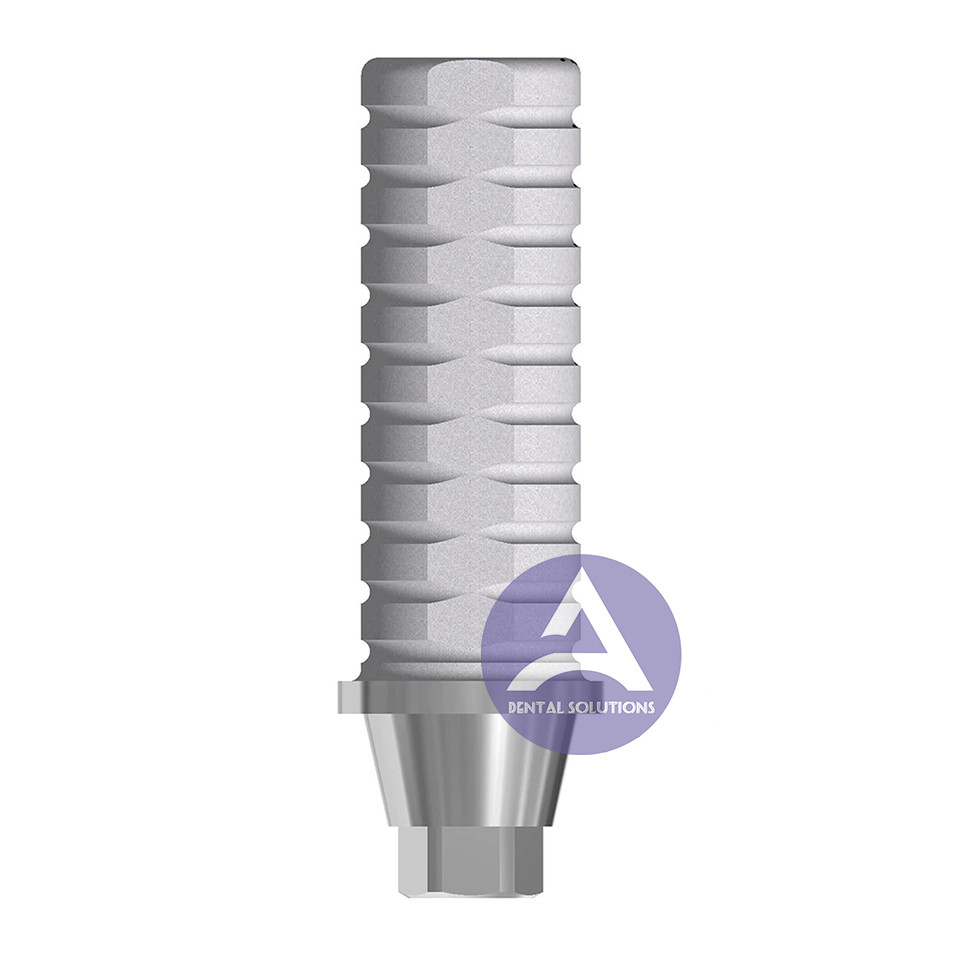

Non Engaging NP 3.5mm Nobel Biocare Temporary Abutment
Nobel Biocare Active® Titanium Abutment Temporary Tooth Implant Compatible with NP 3.5mm/ RP 4.3/5.0mm (Engaging & Non-Engaging)
Description:
Screw-retained provisional – screw-retained with retentive grooves to engage temporary acrylic materials.
Restorative flexibility – two margin heights for single-unit (engaging) and multiple-unit (non-engaging) temporizations.
Snap-fit functionality – for easy and fast try-in of the temporary restoration without the use of screws.
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Titanium interface abutment
* 1pc Screw Included
* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility
* Exterior retentions for more cementation bonding
Specific design ensures a stable union, reinforcing the structure of zirconium in the areas of greatest stress, softening edges and ensuring the service life of the prosthesis.
Furthermore, the saving is also shown in the less time needed when working on the most sensitive part of the prosthesis, the adjustment with the implant.
Approved by CE, ISO 9001, ISO 13485
|
|
TEMPORARY ABUTMENT |
A |
B |
C |
D |
||
| 24.041 | NP | Non-engaging | 3,00 | Circular | 1,50 | 4,50 | |
| 25.041 | NP | Engaging | 3,00 | Hex 2,25 | 1,50 | 4,50 | |
| 24.042 | RP | Non-engaging | 3,35 | Circular | 1,50 | 4,90 | |
| 25.042 | RP | Engaging | 3,35 | Hex 2,65 | 1,50 | 4,90 | |
Fig. 3
Points of NobelActive:
Zirconia abutments are fabricated in two geometries for anterior (Fig.3) and posterior (Fig.4) specific restorations. Abutments are through and through zirconia, suitable for "bake on" procedures and the angulation of angled abutments is machined in relation to the flat side of the indexing hexagon. Zirconia abutment specific final screws are included with each abutment. None of the zirconia abutments are color coded or marked in any way for platform diameter identification.
NP (3.5mm platform) zirconia abutments are only available for anterior restorations. Two straight abutments with a collar height of 1.5mm and 2.5mm complement two angled (10°) abutments with a collar height choice of 1.5mm and 2.5mm.
Fig. 4
RP/WP (4.3/4.9mm platform) anterior straight abutments (Fig.3, top row) are produced with a choice of two (1.5, 2.5mm) collar heights and angled (10°) abutments (Fig.3, bottom row) are also offered with a choice of two (1.5, 2.5mm) collar heights. Straight posterior abutments (Fig.4, top row) are available with two collar heights of 1.5mm and 2.5mm while angled (15°) posterior abutments (Fig.4, bottom row) are also machined with a choice of two collar heights of 1.5mm and 2.5mm.
